Product features and advantages
1. High efficiency and energy saving, suitable for large area cooling
2. Air cooling design without cooling water requirements, easy maintenance
3. Low running noise, suitable for places with noise requirements
industrial air chiller

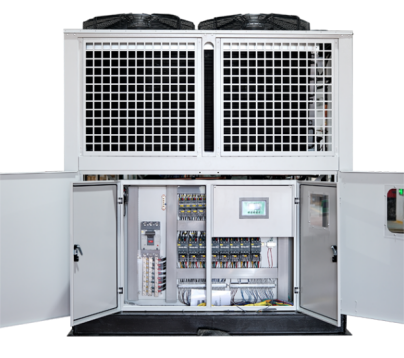

1.product Introduction
The 200hp high-power industrial air chiller is an energy-efficient cooling device designed for large-scale cooling needs. Core features include high cooling capacity, excellent energy efficiency and low maintenance costs. The air-cooled design avoids the need for cooling water in traditional water-cooling systems and greatly simplifies installation and maintenance. The unit uses advanced fan technology to provide strong air flow, ensuring stable and efficient cooling, while operating at a low level of noise, suitable for noise-demanding environments.
This chiller is suitable for a variety of large-area cooling applications, including industrial manufacturing workshops, commercial buildings, data centers, research laboratories and large cold storage. Its high efficiency and reliability make it ideal for dealing with high load cooling requirements. Whether in an industrial environment requiring long-term stable operation, or in a highly demanding commercial location, 200 high-power industrial air chiller can provide excellent cooling performance and economic benefits. Through its optimized air-cooled design, users can enjoy lower operating costs and higher system reliability, thereby improving overall work efficiency.
2.product Parameter
|
Technical Parameters of Air - Cooled Scroll Chiller(Ⅱ) |
||||||
|
Model |
SCA-30-Ⅱ |
SCA-40 |
SCA-50 |
SCA-60 |
SCA-80 |
|
|
Refrigerating capacity (Kcal/h) |
81502.2Kca 94.77KW 27Rt |
108669.6Kca 126.36KW 36Rt |
135837Kca 158KW 45Rt |
163004.4Kca 189.5KW 53.9Rt |
217339.2Kca 252.72KW 71.9Rt |
|
|
Refrigerant |
R407C |
|||||
|
Compressor power(HP) |
30 |
40 |
50 |
60 |
80 |
|
|
Circulating pump power(Hp) |
3/4 |
40HP以上根据客户要求配置 40HP and above are configured according to customer requirements |
||||
|
Cooling fan |
Diameter(mm) |
700 |
750 |
630 |
700 |
750 |
|
Air Volume(m³/h)
|
2*15000 |
2*19000 |
3*12220 |
3*15000 |
3*19000 |
|
|
Chilled drainage piping |
Pipe diameter |
2.5" |
3" |
3" |
4" |
4" |
|
Flow(m³/h) |
14.55 |
22.06 |
22.06 |
42.2 |
42.2 |
|
|
Supply voltage |
AC380V50HZ3PH AC440V50HZ3PH AC220V60HZ3PH |
|||||
|
Description: 1.The cooling capacity is based on evaporating temperature: 7℃, condenser temperature: 50℃, refrigerant: R407C, cooling water temperature: 32-37℃ 2.Optional refrigerant:R134A / R404A / R22 |
||||||
|
Technical Parameters of Air-Cooled Screw Chiller |
||||||||
|
Model |
RC2-40A |
RC2-50A |
RC2-60A |
RC2-80A |
RC2-90A |
RC2-100A |
RC2-120A |
|
|
Refrigerating capacity (Kca/lKw/Rt/h) |
102856Kca 119.6KW 34Rt |
132870Kca 154.5KW 43.9Rt |
149124Kca 173.4KW 49.3Rt |
198230Kca 230.5KW 65.5Rt |
248110Kca 288.5KW 82Rt |
271330Kca 315.5KW 89.7Rt |
320006Kca 372.1KW 105.8Rt |
|
|
Refrigerant |
R407C |
|||||||
|
Compressor Power(Hp) |
40 |
50 |
60 |
80 |
90 |
100 |
120 |
|
|
Supply voltage |
AC380V50HZ3PH/ AC440V50HZ3PH/ AC220V60HZ3PH |
|||||||
|
Energy regulation mode |
25%-50%-75%-100% |
|||||||
|
Starting mode |
Y/▲ |
Y/▲ |
Y/▲ |
Y/▲ |
Y/▲ |
Y/▲ |
Y/▲ |
|
|
Piping of cooling water system |
Pipe diameter |
3" |
3" |
3" |
3" |
4" |
4" |
4" |
|
Description: 1.The cooling capacity is based on evaporating temperature: 7℃, condenser temperature: 50℃, refrigerant: R407C, cooling water temperature: 32-37℃ 2.Optional refrigerant:R134A / R404A / R22 |
||||||||
3.Product feature and application
|
Injection molding |
extrusion |
electroplating |
mold |
leather |
printing |
hydraulic |
|
chemical fiber |
vacuum coating |
papermaking textile |
central air conditioning |
chemical |
profile oxidation |
reaction kettle |
Technical characteristics
- Adopt international brand semi-closed screw compressor, low noise.
- Energy control Through the detection of the temperature sensor, the compressor is divided into 25%-50%-75%- step by step start and stop, which can save energy while exerting the maximum cooling capacity.
- Evaporator and condenser made of seamless welding type internal thread heat exchange copper tube, conduction.
- Microcomputer controller is used to display temperature control, protection and fault code on the control panel, easy to operate.

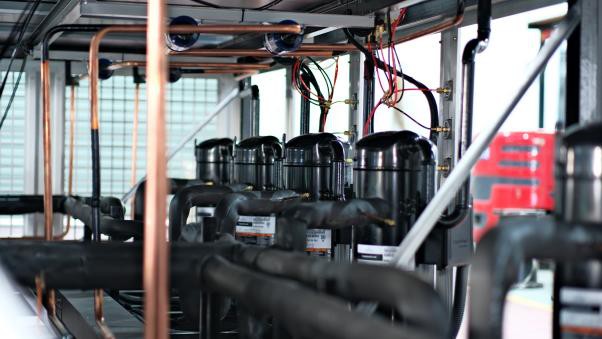

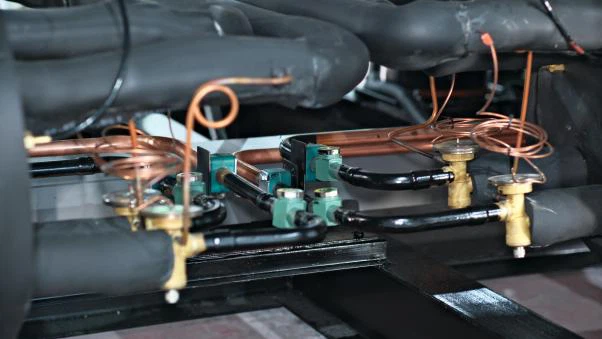

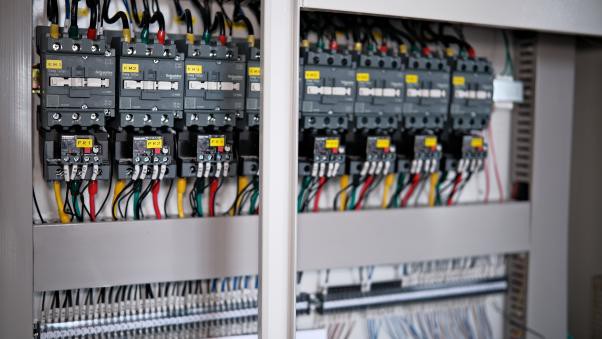

4.Prodection details
|
|
|
|
|
|
5.Prodect qualification
6.Deliver,shipping and serving
- The quality of the products provided by our company shall be implemented in principle according to the technical parameters stipulated by the purchaser, and the products shall be provided to the purchaser with the consent of the purchaser, and the stability and gradual improvement of the product quality shall be ensured.
- The supplier guarantees that the supplied products comply with the legal quality standards, and is responsible for the quality of the products. When necessary, the supplier shall provide the buyer with the necessary quality information, such as the product inspection report and other relevant information.
- The warranty period of all equipment provided by our company is 18 months, from the time the product leaves the supplier.
- When the equipment fails, communicate with the salesman in time, and the technician will provide online technical support within 4 hours until the problem is removed.
- Our company provides spare parts free of charge during the warranty period, and gives priority to spare parts at cost price outside the warranty period. (Freight to be provided by the buyer)
- Our company has a large number of spare parts and wearing parts all year round, and we are committed to providing consulting services 24 hours a day, 7 days a week, to ensure that the equipment can be restored in the shortest time.
- In the process of installation and commissioning, if you encounter any problems, communicate with the salesman in time, our company will send professional and technical personnel to provide online technical support, so that customer technical maintenance personnel can understand the entire process of equipment installation and commissioning, so that customers can carry out daily maintenance work smoothly after production.
