Product Description

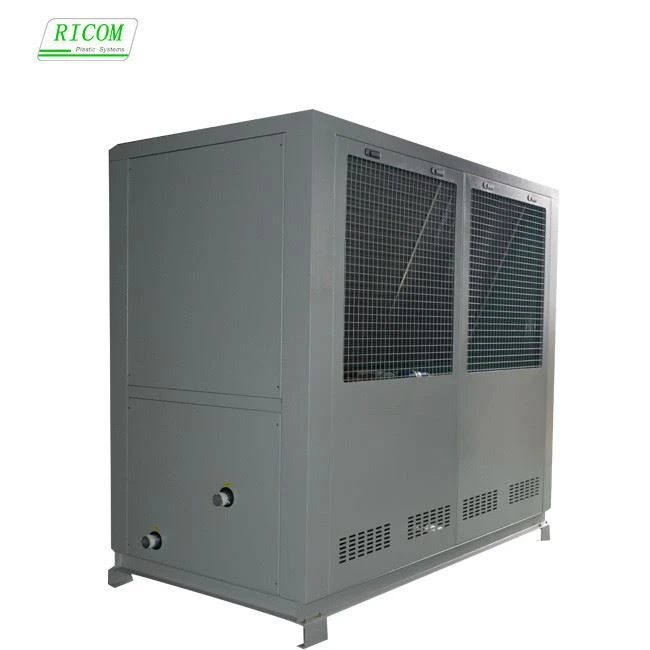

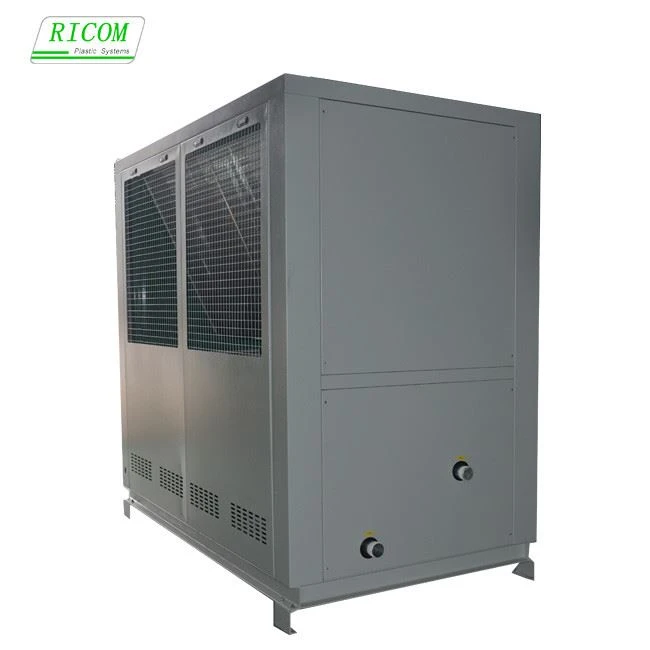

Air-cooled chiller, also known as air-cooled box-type industrial chiller, is a kind of equipment that uses cooling methods to cool the equipment to achieve the technological purpose in a variety of industries with different processes. It is widely used in electronics, electroplating, food, machinery, chemical, laser, card making, medical and other industries. Because the source of heat exchange is gas and it is equipped with a special electric fan, it is called "air cooling".
The air-cooled chiller is mainly suitable for plastics. It can accurately control the temperature of the plastic forming mold to shorten the molding cycle and accelerate the product setting; this series uses the principle of cold and heat exchange for cooling, which can quickly cool down and maintain stable temperature control.
Nanjing RICOM Refrigeration Equipment Co., Ltd. air-cooled chillers are divided into air-cooled screw and scroll chillers.
Product Principle
Product Characteristics
Air cooled screw chiller | Air cooled scroll chiller | |
Compressor | German "BIZEER" or Taiwan "HANBELL" screw type | American COPELAND compressor or Japan "PANASONIC" |
Condenser and evaporator | All copper fin condenser, shell and tube evaporator | All copper fin condenser, shell and tube evaporator |
Control system | Current fault query, historical fault query, antifreeze protection device, high-precision high and low pressure controller, high and low pressure gauge | Current fault query, historical fault query, antifreeze protection device, high-precision high and low pressure controller, high and low pressure gauge |
Expansion valve, solenoid valve, drying filter | Use Danish "DANFOSS" or "EMERSON" | Use Danish "DANFOSS" or "EMERSON" |
Product Process
Nanjing RICOM Refrigeration Equipment Co., Ltd. adheres to the spirit of craftsmanship and creates high-quality products.
Product Parameters
Technical parameters of air - cooled scroll chiller | |||||||
Model | SCA-05 | SCA-08 | SCA-10-Ⅱ | SCA-15-Ⅲ | SCA-20-Ⅱ | SCA-25-Ⅱ | |
Refrigerating capacity (Kcal/h) | 13583.7/15.8/4.5 | 21733.2/25.3/7.2 | 27167.4/31.59/9 | 40751.1/47.4/13.5 | 54334.8/63.18/18 | 67918.5/79/22.5 | |
Refrigerant | R22/R134A/ | R22/R134A/ | R22/R134A/ | R22/R134A/ | R22/R134A/ | R22/R134A/ | |
Compressor power (HP) | 5 | 8 | 10 | 15 | 20 | 25 | |
Circulating pump power (Hp) | 1 | 2 | 2 | 3 | 3 | 4 | |
Cooling fan | Diameter (mm) | 550 | 600 | 500 | 550 | 600 | 630 |
Air Volume(m³/h) | 6487 | 10820 | 2*6264 | 2*8487 | 2*10820 | 2*12220 | |
| Chilled drainage piping | Pipe diameter | 1" | 1.5" | 1.5" | 2" | 2" | 2.5" |
Flow (m³/h) | 2.74 | 4.27 | 4.27 | 8.59 | 8.59 | 14.55 | |
Supply voltage | AC380V50HZ3PH | AC380V50HZ3PH | AC380V50HZ3PH | AC380V50HZ3PH | AC380V50HZ3PH | AC380V50HZ3PH | |
Refrigerating capacity is based on evaporation temperature of 7℃, condenser temperature of 50℃, refrigerant: R22, and cooling water temperature of 32-37℃ | |||||||
Model | SCA-30-Ⅱ | SCA-40 | SCA-50 | SCA-60 | SCA-80 | |
Refrigerating capacity (Kcal/h) | 81502.2/94.77/27 | 108669.6/126.36/36 | 135837/158/45 | 163004.4/189.5/53.9 | 217339.2/252.72/71.9 | |
Refrigerant | R22/R134A/ | R22/R134A/ | R22/R134A/ | R22/R134A/ | R22/R134A/ | |
Compressor power (HP) | 30 | 40 | 50 | 60 | 80 | |
Circulating pump power (Hp) | 4 | 40HP and above are configured according to customer requirements | 40HP and above are configured according to customer requirements | 40HP and above are configured according to customer requirements | 40HP and above are configured according to customer requirements | |
Cooling fan | Diameter (mm) | 700 | 750 | 630 | 700 | 750 |
Air Volume (m³/h) | 2*15000 | 2*19000 | 3*12220 | 3*15000 | 3*19000 | |
Chilled drainage piping | Pipe diameter | 2.5" | 3" | 3" | 4" | 4" |
Flow (m³/h) | 14.55 | 22.06 | 22.06 | 42.2 | 42.2 | |
Supply voltage | AC380V50HZ3PH | AC380V50HZ3PH | AC380V50HZ3PH | AC380V50HZ3PH | AC380V50HZ3PH | |
Refrigerating capacity is based on evaporation temperature of 7℃, condenser temperature of 50℃, refrigerant: R22, and cooling water temperature of 32-37℃ | ||||||
Technical parameters of air-cooled screw chiller | ||||||||
Model | RC2-40A | RC2-50A | RC2-60A | RC2-80A | RC2-90A | RC2-100A | RC2-120A | |
Refrigerating capacity (Kcal/h) | 107576/124.6/35.4 | 141126/164.1/46.7 | 151188/175.8/50 | 202272/235.2/66.9 | 252496/293.6/83.5 | 281134/326.9/93 | 329208/382.8/108.9 | |
Refrigerant | R22/R134A/ | R22/R134A/ | R22/R134A/ | R22/R134A/ | R22/R134A/ | R22/R134A/ | R22/R134A/ | |
Compressor | 40 | 50 | 60 | 80 | 90 | 100 | 120 | |
Supply voltage | AC380V50HZ3PH/ | AC380V50HZ3PH/ | AC380V50HZ3PH/ | AC380V50HZ3PH/ | AC380V50HZ3PH/ | AC380V50HZ3PH/ | AC380V50HZ3PH/ | |
Energy regulation mode | 25%-50%-75%-100% | 25%-50%-75%-100% | 25%-50%-75%-100% | 25%-50%-75%-100% | 25%-50%-75%-100% | 25%-50%-75%-100% | 25%-50%-75%-100% | |
Starting mode | Y/▲ | Y/▲ | Y/▲ | Y/▲ | Y/▲ | Y/▲ | Y/▲ | |
Piping of cooling water system | Pipe diameter | 3" | 3" | 3" | 3" | 4" | 4" | 4" |
Refrigerating capacity is based on evaporation temperature of 7℃, condenser temperature of 50℃, refrigerant: R22, and cooling water temperature of 32-37℃ | ||||||||
Customer Case
Air cooling water machine is used in: electronics, electroplating, food, machinery, chemical, laser, business card printing, medical and other industries.
My company has served many industries, has a wealth of industry application experience.
FAQ
Common problems when buying products
Q: How long has your company been established?
A: Our company was founded in 2014, but most of our engineers have been in the industry for over 15 years, and our boss has been in the industry for over 20 years.
Q: Is your company a trading company?
A: Our company is a trading company, but we have our own factory.
Q: What are your terms of payment?
A:T/T pays 30% in advance and 100% before delivery.
Q: How long is your delivery time?
A: 25-30 working days for standard products and 45 working days for non-standard customization
Q: How long is the warranty?
A: If the parts are broken or damaged, within 18 months from the date of leaving the factory.
These parts are provided free of charge by our company (except for wearing parts due to quality problems).
