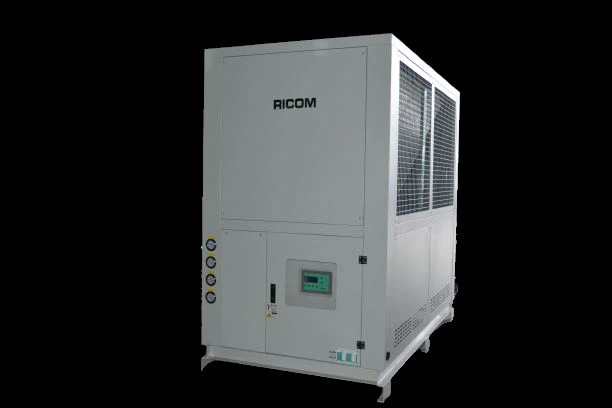

Air Cooled Industrial Chiller

　　What is an air cooled industrial chiller?

　　The air cooled industrial chiller is pre-assembled and factory-tested package units, capable of guaranteeing high reliability under heavy duty peration with maximum functional efficiency, even in the worst environmental conditions.

　　It is a refrigeration system that cools fluids and works in tandem with a facility's air handler system. A chiller has four main parts: an evaporator, compressor, condenser, and expansion valve. An air-cooled chiller works by absorbing the heat from processed water.

　　RICOM air cooled industrial chillers feature high energy efficiency and low noise. In addition to top-level configurations, the superior quality of RICOM products is attributed to excellent structural design and strict production and quality control processes. The complete product range, reliable product quality, and top-level refrigeration solution capabilities enable RICOM air-cooled industrial chillers to serve a growing number of industries and customers.Widely used in many industrial processing such as plastic injection, plastic extruding, laser, plasma, water jet cutting, craft brewery, chemicals, welding, etc…

　　HOW air cooled industrial chiller work?

　　Simplicity of operation

　　The air cooled industrial chiller have a very simple operating mode: the water returning from the processes passes through the evaporator by the recirculation pump.

　　Thanks to the heat exchange with the refrigerant gas, it is cooled and then sent to the storage tank from where it returns to the utilities through the process pump (in some applications the tank and the pumps are separated from the chiller).

　　The heat extracted is dissipated into the ambient air through the condenser and the fans.

　　The set temperature is maintained by the control panel, partializing the cooling capacity supplied by the compressors based on the actual cooling load required.

　　Standard Products Available Range

　　· Cooling capacity range: 15KW to 380KW

　　· Set temperature range: 5℃ to 30℃

　　· Temperature controlling vibration: ±1℃

　　Smart Microprocessor Controller

　　· Comprehensive monitoring and precise temperature control, text display and audible alarm for running failure.

　　Timing switch function, 25%-50%-75%-100% energy automatic adjustment function

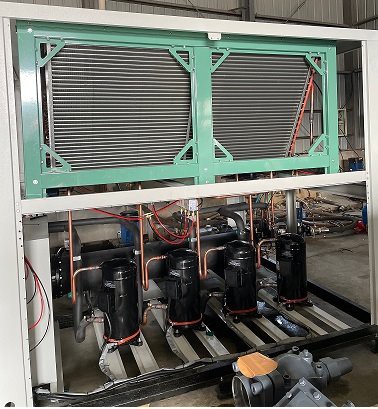

　　Scroll /Screw Compressors

　　· Danfoss or Copeland hermetic scroll compressors

　　German "Bizeer" or Taiwan "Hanbell" screw compressor

　　· Close cooperation with compressor manufacturers for decades has enabled us to maximize their efficiency.

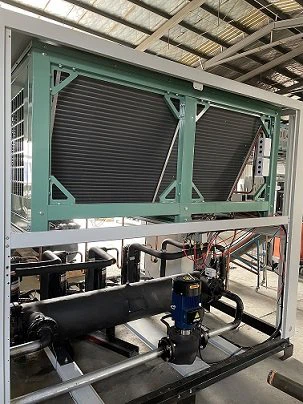

　　Heat Exchanging Parts

　　· Generously sized aluminum fin condenser with epoxy resin coating, lowering vulnerability to ambient corrosion

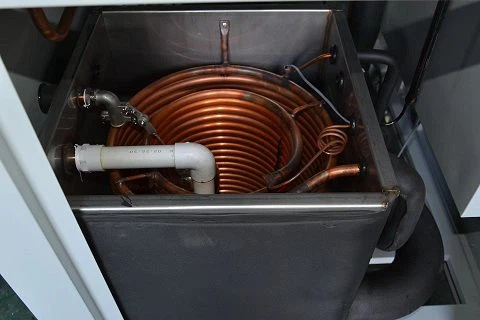

　　·The use of all copper shell tube condenser and evaporator, is our standard design, only high-grade configuration can be seen. Its stability and efficiency are unmatched by other types.

　　Built-in Hydronic Module

　　· The unit integrates a buffer tank and a large-flow circulation pump for easy installation and use.

　　· Inlet and outlet water bypass valves are equipped to adjust the water pressure as needed.

　　· The water tank sight glass allows the water level and water quality to be checked at a glance.
