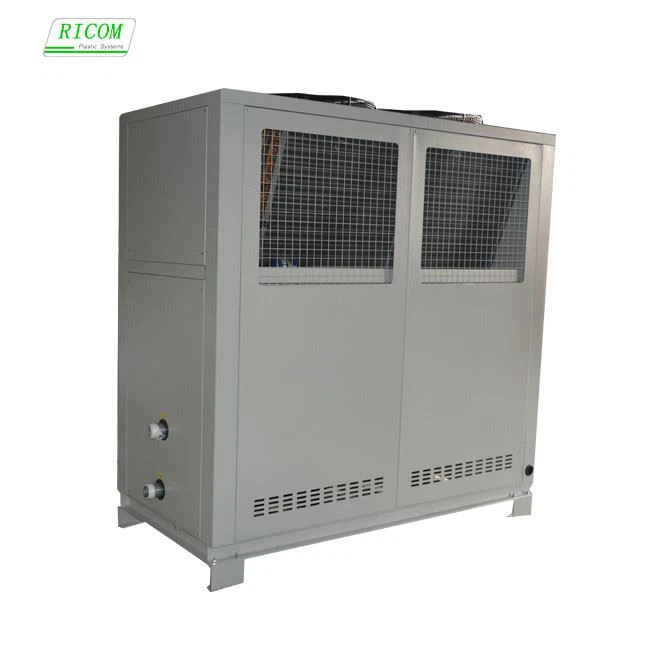

Product Description
The open chiller unit is equipped with multiple protection devices, complete parts and components, which can be used in actual operating conditions. Suitable for injection molding, electroplating, printing, chemical, food manufacturing and other industrial equipment cooling.
Nanjing RICOM Refrigeration Equipment Co., Ltd. open air-cooled chillers are divided into screw type and scroll type.
Product Principle
Product Characteristics
1. The compressor of the unit adopts famous brand semi-hermetic screw compressors such as Copeland and BITZER and electronic control components, and is equipped with a condenser and evaporator made of high-efficiency and high-quality copper tubes for heat exchange;
2. Equipped with various safety protection devices, stable performance, low noise, long service life, simple operation; LCD display man-machine interface, simple and convenient operation, operation status is clear at a glance;
3. Models have single compressor or multi-compressor combined refrigeration system. The compressor can automatically alternate operation according to load changes, balance the operating hours of each compressor, and achieve the effect of saving energy and prolonging the service life of the chiller. Facilitate energy adjustment, more energy-saving under partial load;
4. Open structure, beautiful appearance of the whole machine, simple structure, can check the operation of the unit at any time, installation and maintenance are simple and convenient;
5. This product can be designed according to the special needs of customers, combined with excellent technology and strict production standards, to provide customers with high-quality and energy-saving non-standard products.
Product Process
Nanjing RICOM Refrigeration Equipment Co., Ltd. adheres to the spirit of craftsmanship and creates high-quality products.
Product Parameters
Technical parameters of open air - cooled scroll chiller | |||||||
Model | SCA-05K | SCA-08K | SCA-10K-Ⅱ | SCA-15K-Ⅲ | SCA-20K-Ⅱ | SCA-25K-Ⅱ | |
Refrigerating capacity (Kcal/h) | 13583.7/15.8/4.5 | 21733.2/25.3/7.2 | 27167.4/31.59/9 | 40751.1/47.4/13.5 | 54334.8/63.18/18 | 67918.5/79/22.5 | |
Refrigerant | R22/R134A/ | R22/R134A/ | R22/R134A/ | R22/R134A/ | R22/R134A/ | R22/R134A/ | |
Compressor power (HP) | 5 | 8 | 10 | 15 | 20 | 25 | |
Circulating pump power (Hp) | 1 | 2 | 2 | 3 | 3 | 4 | |
Cooling fan | Diameter (mm) | 550 | 600 | 500 | 550 | 600 | 630 |
Air Volume (m³/h) | 6487 | 10820 | 2*6264 | 2*8487 | 2*10820 | 2*12220 | |
Chilled drainage piping | Pipe diameter | 1" | 1.5" | 1.5" | 2" | 2" | 2.5" |
Flow (m³/h) | 2.74 | 4.27 | 4.27 | 8.59 | 8.59 | 14.55 | |
Supply voltage | AC380V50HZ3PH | AC380V50HZ3PH | AC380V50HZ3PH | AC380V50HZ3PH | AC380V50HZ3PH | AC380V50HZ3PH | |
Refrigerating capacity is based on evaporation temperature of 7℃, condenser temperature of 50℃, refrigerant: R22, and cooling water temperature of 32-37℃ | |||||||
Model | SCA-30K-Ⅱ | SCA-40K | SCA-50K | SCA-60K | SCA-80K | |
Refrigerating capacity (Kcal/h) | 81502.2/94.77/27 | 108669.6/126.36/36 | 135837/158/45 | 163004.4/189.5/53.9 | 217339.2/252.72/71.9 | |
Refrigerant | R22/R134A/ | R22/R134A/ | R22/R134A/ | R22/R134A/ | R22/R134A/ | |
Compressor power (HP) | 30 | 40 | 50 | 60 | 80 | |
Circulating pump power (Hp) | 4 | 40HP and above are configured according to customer requirements | 40HP and above are configured according to customer requirements | 40HP and above are configured according to customer requirements | 40HP and above are configured according to customer requirements | |
Cooling fan | Diameter (mm) | 700 | 750 | 630 | 700 | 750 |
Air Volume (m³/h) | 2*15000 | 2*19000 | 3*12220 | 3*15000 | 3*19000 | |
Chilled drainage piping | Pipe diameter | 2.5" | 3" | 3" | 4" | 4" |
Flow (m³/h) | 14.55 | 22.06 | 22.06 | 42.2 | 42.2 | |
Supply voltage | AC380V50HZ3PH | AC380V50HZ3PH | AC380V50HZ3PH | AC380V50HZ3PH | AC380V50HZ3PH | |
Refrigerating capacity is based on evaporation temperature of 7℃, condenser temperature of 50℃, refrigerant: R22, and cooling water temperature of 32-37℃ | ||||||
Technical parameters of open air - cooled scroll chiller | ||||||||
Model | RC2-40AK | RC2-50AK | RC2-60AK | RC2-80AK | RC2-90AK | RC2-100AK | RC2-120AK | |
Refrigerating capacity (Kcal/h) | 107576/124.6/35.4 | 141126/164.1/46.7 | 151188/175.8/50 | 202272/235.2/66.9 | 252496/293.6/83.5 | 281134/326.9/93 | 329208/382.8/108.9 | |
Refrigerant | R22/R134A/ | R22/R134A/ | R22/R134A/ | R22/R134A/ | R22/R134A/ | R22/R134A/ | R22/R134A/ | |
Compressor Power (Hp) | 40 | 50 | 60 | 80 | 90 | 100 | 120 | |
Supply voltage | AC380V50HZ3PH/ | AC380V50HZ3PH/ | AC380V50HZ3PH/ | AC380V50HZ3PH/ | AC380V50HZ3PH/ | AC380V50HZ3PH/ | AC380V50HZ3PH/ | |
Energy regulation mode | 25%-50%-75%-100% | 25%-50%-75%-100% | 25%-50%-75%-100% | 25%-50%-75%-100% | 25%-50%-75%-100% | 25%-50%-75%-100% | 25%-50%-75%-100% | |
Starting mode | Y/▲ | Y/▲ | Y/▲ | Y/▲ | Y/▲ | Y/▲ | Y/▲ | |
Piping of cooling water system | Pipe diameter | 3" | 3" | 3" | 3" | 4" | 4" | 4" |
Refrigerating capacity is based on evaporation temperature of 7℃, condenser temperature of 50℃, refrigerant: R22, and cooling water temperature of 32-37℃ | ||||||||
Customer Case
Open chiller is widely used in injection molding, electroplating, printing, chemical industry, food manufacturing and other industries.
My company has served many industries, has a wealth of industry application experience.
FAQ
Common problems when buying products
Q: How long has your company been established?
A: Our company was founded in 2014, but most of our engineers have been in the industry for over 15 years, and our boss has been in the industry for over 20 years.
Q: Is your company a trading company?
A: Our company is a trading company, but we have our own factory.
Q: What are your terms of payment?
A: T/T pays 30% in advance and 100% before delivery.
Q: How long is your delivery time?
A: 25-30 working days for standard products and 45 working days for non-standard customization
Q: How long is the warranty?
A: If the parts are broken or damaged, within 18 months from the date of leaving the factory.
These parts are provided free of charge by our company (except for wearing parts due to quality problems).
