Product Description
Explosion-proof mold temperature machine is mainly used in military industry, aviation, nuclear industry, Marine industry, petroleum, chemical industry, scientific research institutions and electric power industry environment where there may be inflammable and explosive gas production environment application.
The operation principle of explosion-proof mold temperature machine and constant scale temperature machine is the same, which is to convert electrical energy into heat energy to heat the material to be heated. During work, the low-temperature fluid medium enters its input port under pressure through the pipeline, and takes away the high-temperature heat energy generated by the electric heating element along the specific heat exchange channel inside the electric heating vessel, using the path designed by the principle of fluid thermodynamics, The temperature of the heated medium is increased, and the high temperature medium required by the process is obtained at the outlet of the electric heater.
Nanjing RICOM refrigeration Equipment Co., LTD. Explosion-proof mold temperature machine is divided into water type and oil type.

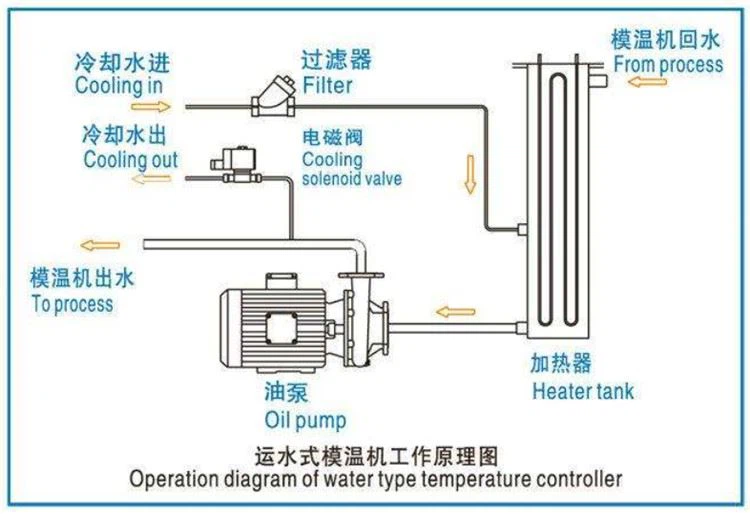

Product Principle
Product Characteristics
1. Explosion-proof motor: the explosion-proof motor is a kind of motor that can be used in inflammable and explosive places. It does not produce electric sparks when running.
2. Limit the operating power supply and voltage of the sensing circuit.
3. An explosion-proof electric control cabinet is used to seal and isolate the electronic components. The explosion-proof control box shell is made of steel plate welding or cast aluminum alloy or 304 stainless steel die-casting, and the surface is high-voltage electrostatic sprayed. The product generally adopts a composite structure composed of an explosion-proof shell and an increased safety shell.
4. The internal components of the explosion-proof enclosure can be equipped with explosion-proof buttons, explosion-proof components, explosion-proof signal lights, explosion-proof transfer switches and explosion-proof meters, and ordinary electrical components such as AC contactors, thermal relays, thermostats and various functional modules; increased safety type Buttons, control switches, instruments, etc. inside the shell are all explosion-proof components.
Product Process
Water type explosion-proof mold temperature machine | ||||||||
Model | Operating temperature (Max.℃) | Control mode | Heating power (KW) | Circulator pumps | Piping system | |||
Pump power | Max Pressure | Max Flow Rate | Circulating media | Circulation cooling water | ||||
MTW-607H2F | 120 | Microcomputer controller PID control | 6 | 0.75 | 3.0 kg/cm² | 45 L/min | PT3/8 *4 (2*2) | PT1/2" |
MTW-907H2F | 9 | 0.75 | 3.0 kg/cm² | 45 L/min | PT3/8 *4 (2*2) | |||
MTW-1210H2F | 12 | 1 | 3.0 kg/cm² | 133 L/min | PT3/8 *8 (4*4) | |||
MTW-1815H2F | 18 | 1.5 | 4.0 kg/cm² | 133 L/min | PT3/8 *8 (4*4) | |||
MTW-2420H2F | 24 | 2 | 4.0 kg/cm² | 165 L/min | PT3/8 *8 (4*4) | PT1" | ||
MTW-3630H2F | 36 | 3 | 4.0 kg/cm² | 177 L/min | PT1" *2 (1*1) | |||
MTW-4840H2F | 48 | 4 | 4.5 kg/cm² | 200 L/min | PT1.5" *2 (1*1) | PT1.5" | ||
MTW-6050H2F | 60 | 5 | 5.5 kg/cm² | 200 L/min | PT1.5" *2 (1*1) | |||
MTW-7270H2F | 72 | 7 | 6.5 kg/cm² | 233 L/min | PT2" *2 (1*1) | PT2" | ||
MTW-96100H2F | 96 | 10 | 6.5 kg/cm² | 257 L/min | PT2.5" *2 (1*1) | |||
Oil type explosion-proof mold temperature machine | ||||||||
Model | Operating temperature (Max.℃) | control mode | Heating power (KW) | Circulator pumps | Piping system | |||
Pump power | Max Pressure | Max Flow Rate | Circulating media | circulation cooling water | ||||
MTO-607H20F | 200 | Microcomputer controller PID control | 6 | 0.5 | 2.0 kg/cm² | 40 L/min | PT3/8 *4 (2*2) | PT1/2" |
MTO-907H20F | 9 | 0.5 | 2.0 kg/cm² | 42 L/min | PT3/8 *4 (2*2) | |||
MTO-1210H20F | 12 | 1 | 2.1 kg/cm² | 127 L/min | PT3/8 *8 (4*4) | |||
MTO-1815H20F | 18 | 1.5 | 2.8 kg/cm² | 113 L/min | PT3/8 *8 (4*4) | |||
MTO-2420H20F | 24 | 2 | 2.8 kg/cm² | 133 L/min | PT3/8 *8 (4*4) | PT1" | ||
MTO-3630H20F | 36 | 3 | 2.8 kg/cm² | 165 L/min | PT1’ *2 (1*1) | |||
MTO-4840H20F | 48 | 4 | 3.1 kg/cm² | 177 L/min | PT1.5’ *2 (1*1) | PT1.5" | ||
MTO-6050H20F | 60 | 5 | 3.8 kg/cm² | 183 L/min | PT1.5’ *2 (1*1) | |||
MTO-7270H20F | 72 | 7 | 4.5 kg/cm² | 203 L/min | PT2’ *2 (1*1) | PT2" | ||
MTO-96100H20F | 96 | 10 | 4.5 kg/cm² | 221 L/min | PT2.5’ *2 (1*1) | |||
Customer Case
Explosion-proof mold temperature machine is mainly used in military industry, aviation, nuclear industry, Marine industry, petroleum, chemical industry, scientific research institutions and electric power industry environment where there may be inflammable and explosive gas production environment application.
My company with high quality products and professional services to win the praise of many customers!
FAQ
Common problems when buying products
Q: How long has your company been established?
A: Our company was founded in 2014, but most of our engineers have been in the industry for over 15 years, and our boss has been in the industry for over 20 years.
Q: Is your company a trading company?
A: Our company is a trading company, but we have our own factory.
Q: What are your terms of payment?
A: T/T pays 30% in advance and 100% before delivery.
Q: How long is your delivery time?
A: 25-30 working days for standard products and 45 working days for non-standard customization
Q: How long is the warranty?
A: If the parts are broken or damaged, within 18 months from the date of leaving the factory.
These parts are provided free of charge by our company (except for wearing parts due to quality problems).
