How to replace the compressor in a water cooled scroll chiller?

As a supplier of Water Cooled Scroll Chillers, I often encounter customers who are interested in understanding the process of replacing the compressor in these systems. In this blog post, I'll provide a comprehensive guide on how to replace the compressor in a water cooled scroll chiller, covering everything from the necessary tools and safety precautions to the step-by-step replacement process.

Tools and Materials Needed

Before you start the compressor replacement process, you'll need to gather the following tools and materials:

Refrigerant recovery machine: This is used to safely remove the refrigerant from the chiller system before starting the compressor replacement.
Wrenches and sockets: You'll need a variety of wrenches and sockets to remove and install the compressor.
Torque wrench: To ensure that all bolts are tightened to the correct torque specification.
Leak detector: To check for refrigerant leaks after the replacement is complete.
New compressor: Make sure to choose a compressor that is compatible with your water cooled scroll chiller.
Refrigerant oil: The correct type and amount of refrigerant oil is essential for the proper operation of the new compressor.
Gaskets and seals: These are used to prevent refrigerant leaks between the compressor and the chiller system.

Safety Precautions

Working on a water cooled scroll chiller can be dangerous, so it's important to take the following safety precautions:

Turn off the power: Before starting any work on the chiller, make sure to turn off the power supply to prevent electrical shock.
Wear protective gear: Wear safety glasses, gloves, and appropriate clothing to protect yourself from refrigerant leaks and other hazards.
Follow refrigerant handling guidelines: Refrigerants are harmful to the environment and can be dangerous if not handled properly. Make sure to follow all local and national regulations regarding refrigerant handling.
Use proper lifting equipment: Compressors can be heavy, so use a hoist or other lifting equipment to safely remove and install the compressor.

Step-by-Step Compressor Replacement Process

Step 1: Recover the Refrigerant

Connect the refrigerant recovery machine to the chiller system according to the manufacturer's instructions.
Start the recovery machine and allow it to remove all the refrigerant from the system.
Once the refrigerant has been recovered, close the valves on the recovery machine and disconnect it from the chiller system.

Step 2: Disconnect the Electrical Connections

Locate the electrical connections to the compressor and carefully disconnect them. Make sure to label each connection to ensure proper reinstallation.
Use a voltage tester to confirm that there is no power to the compressor before proceeding.

Step 3: Remove the Compressor Mounting Bolts

Locate the mounting bolts that secure the compressor to the chiller frame.
Use a wrench or socket to remove the mounting bolts.
Once the bolts are removed, carefully lift the compressor out of the chiller frame using a hoist or other lifting equipment.

Step 4: Remove the Refrigerant Lines

Use a wrench or socket to loosen the refrigerant lines connected to the compressor.
Be careful not to damage the refrigerant lines or the compressor fittings.
Once the refrigerant lines are disconnected, cap them to prevent dirt and debris from entering the system.

Step 5: Install the New Compressor

Place the new compressor in the chiller frame and align it with the mounting holes.
Insert the mounting bolts and tighten them to the correct torque specification using a torque wrench.
Connect the refrigerant lines to the new compressor and tighten the fittings to the correct torque specification.

Step 6: Add Refrigerant Oil

Refer to the compressor manufacturer's instructions to determine the correct type and amount of refrigerant oil to add.
Use a refrigerant oil charging tool to add the oil to the compressor.

Step 7: Reconnect the Electrical Connections

Reconnect the electrical connections to the new compressor, making sure to follow the labels you made earlier.
Use a voltage tester to confirm that there is power to the compressor.

Step 8: Evacuate the System

Connect a vacuum pump to the chiller system and evacuate the system to remove any moisture and non-condensable gases.
Once the system has been evacuated, close the valves on the vacuum pump and disconnect it from the chiller system.

Step 9: Charge the System with Refrigerant

Connect the refrigerant charging cylinder to the chiller system and open the valves to allow the refrigerant to flow into the system.
Refer to the chiller manufacturer's instructions to determine the correct amount of refrigerant to charge the system.
Once the system has been charged with refrigerant, close the valves on the charging cylinder and disconnect it from the chiller system.

Step 10: Check for Leaks

Use a leak detector to check for refrigerant leaks at all the connections and fittings in the chiller system.
If any leaks are detected, tighten the fittings or replace the gaskets and seals as necessary.

Conclusion

Replacing the compressor in a water cooled scroll chiller is a complex process that requires the right tools, materials, and expertise. By following the steps outlined in this blog post and taking the necessary safety precautions, you can successfully replace the compressor in your chiller system. If you have any questions or need further assistance, please don't hesitate to contact us. We're a leading supplier of Water Chiller Machine, Low Temperature Water Cooled Screw or Scroll Chiller, and Screw Type Chiller. Our team of experts is always ready to help you with your chiller needs. Whether you're looking to purchase a new chiller or need assistance with maintenance and repair, we're here to provide you with the best solutions. Contact us today to start a discussion about your specific requirements and explore how we can meet your cooling needs effectively.

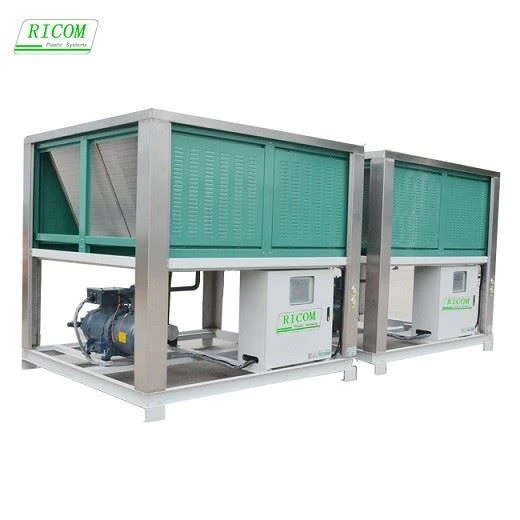

Water Chiller Machine Screw Type Chiller
